More Resolution - More Flexibility

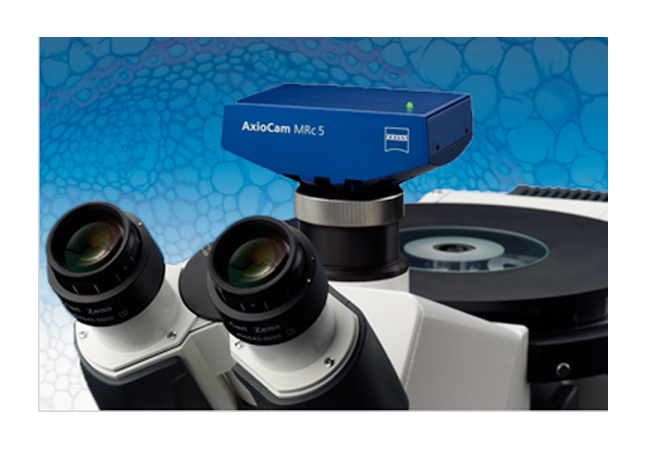

Outstanding image quality for a wide variety of requirements in medicine and biology. With the AxioCam MRc 5, you can take advantage of 12 different acquisition modes and up to 5 megapixels resolution for your images. Thanks to the dynamic range of 1:1300 and the 36 bit RGB color depth, you can produce images with perfect color accuracy even when faced with substantial differences in brightness or reflective surfaces.
Mobile and fast
Connect the AxioCam MRc 5 with a single cable to the standard FireWire interface of your desktop or notebook. Control the complete image acquisition via this 400 megabit high speed connection and process the images instantly on your computer.
Highlights
★ 5 Megapixel resolution
★ Interlaced and progressive readout
★ 12 different capture modes
★ Binning from 1x1 to 10x10 for increased sensitivity
★ Dynamic range 1:1300
★ Fast live image with up to 14 frames/second
★ Large field of view and low noise due to 2/3‘‘ CCD
★ Standard FireWire interface
★ Trigger In/Out signal for control of external components
★ Complete imaging software with measuring functions
Technical data
|
Number of pixels |
2584 (H) x 1936 (V) = 5 megapixels |
|
Digitization |
12 bit / 12 Mhz pixel clock |
|
Dynamic range |
Typical 1:1300 |
|
Integration time |
1 ms to 60 s |
|
Cooling |
Single stage Peltier cooling |
|
Interface |
FireWire / IEEE 1394, 6-pin jack, speed 400 MBit |
Live Image Frame Rate
|
Max. Frame Rate |
Mode |
Horiz. |
x |
Vert. |
|
3 fps |
slow |
1296 |
x |
968 |
|
11 fps |
middle |
430 |
x |
322 |
|
16 fps |
fast |
258 |
x |
193 |
Note: Max. image frame rate dependes on the exposure time
and the hard- and software of the PC.
Selectable Resolution in Quality Mode (Interlaced):
(Recommended for highest image quality)
|
Horiz. |
x |
Vert. |
Binning |
|
516 |
x |
387 |
5 x 5, Farbe |
|
646 |
x |
484 |
4 x 4, Farbe |
|
861 |
x |
645 |
3 x 3, Farbe |
|
1292 |
x |
968 |
2 x 2, Farbe |
|
2584 |
x |
1936 |
1 x 1, Farbe |
Selectable Resolution in Fast Mode (Progressive):
(Recommended for moving objects)
|
Horiz. |
x |
Vert. |
Binning |
|
258 |
x |
193 |
10 x 10, Color |
|
323 |
x |
242 |
8 x 8, Color |
|
430 |
x |
322 |
6 x 6, Color |
|
646 |
x |
484 |
4 x 4, Mono |
|
1292 |
x |
968 |
2 x 2, Color |
|
1292 |
x |
968 |
2 x 2, Mono |
|
2584 |
x |
1936 |
1 x 1, interpolated, Color |
|
Read-out of sensor sub-regions |
freely selectable |
||
|
Pixel size |
3.4 µm x 3.4 µm |
||
|
Sensor size |
8.7 mm x 6.6 mm equivalent to 2/3" CCD |
||
|
Sensor |
ICX 282, Interline Transfer |
||
|
Spectral range |
Approx. 400 nm to 710 nm with infrared barrier filter BG40 |
||
|
Read-out modes |
Progressive / Interlaced |
||
|
Control signals |
TTL-output for controlling external electrical shutters |
||
|
Optical interface |
C-Mount |
||
|
Thread depth for objectives |
Max. of 5 mm (C-Mount) |
||
|
Max. file size per image |
Approx. 30 MB at 2584 x 1936 with 3 x 12 bit |
||
|
Operating systems |
Windows 2000 Professional (ab SP3) Windows XP Professional (ab SP1) |
||
|
Size / Weight |
Approx. 11 cm x 8 cm x 4,5 cm / 370 g |
||
|
Housing |
Blue anodized aluminum, with cooling fins, 1/4" connection for tripod mount |
||
|
Registration |
CE, cUL |
||
|
Power supply |
12 V DC, 250 mA, supply via FireWire / IEEE 1394 interface and data cable from the PC (no external power supply necessary if used in combination with PC). If camera is used together with a notebook a FireWire / IEEE 1394 hub is required. |
||
|
Ambient condition |
+5° to +35° Celsius; max. of 80% relative air humidity, not condensing |
||
|
Shipment |
AxioVision LE |
||
